Thruster specs
Max Power CT100: specs, price and the boats it fits
The CT100 is the bow thruster Beneteau and Jeanneau put in many of their mid-size sailboats through the 2010s. Twin propellers in a 185 mm tube give 231 lb of push on 12 V, for boats of about 32 to 51 ft, and it is just as much at home on a motor boat.
Marinedeal sells it for $2,824, thruster only. The tube, a panel, a main switch and a fuse add about $541 to $1,369. The current manual asks for more cranking power than one battery gives at 12 V, so we price two batteries, heavy cable and a charger at $1,212 to $1,879. See the parts.
One owner’s CT100 beeped, flashed and would not run; a faulty heat sensor was the cause, a cheap fix. A Jeanneau owner lost two sets of batteries in two and a half years, and Max Power’s answer was a bigger bank. Rest it after 2 to 3 minutes. Warranty: two years, three if registered.
Installers will find the wiring figures and dimensions further down. For the rest of Max Power’s line, read the Max Power thruster review.
Where this summary comes from (7 sources, read 12 October 2026)
- Max Power product page
- US dealer listing (price read 12 Oct 2026)
- Max Power CT100 / CT125 installation manual, serials from 83338 ("2000 CCA maximum total output")
- YBW forum, 2016 to 2021: a CT100 that beeped and would not run (a faulty heat sensor)
- Jeanneau owners forum, 2021 to 2022: a Sun Odyssey 44i’s CT100 and its batteries
- Max Power: founded 1987 in Mandelieu, France; Lalizas Italia
- Max Power Warranty Conditions (three years; transferable; two hours of field labor in year one)
Key facts
- DIY level 2 of 5 Wiring prep only
- Thrust 231 lb 105 kgf, Max Power's rating
- Boat length 32 to 51 ft Max Power's product page
- Price $2,824 equipment only, marinedeal.com, 15 September 2026
- Fitted by a yard $10,777 to $21,322 Our estimate at 55 ft, unit and job
- Voltage 12 V As sold
- Mounts Tunnel Fixed mount, end not stated
- To fit it Haul-out The boat comes out of the water
- Run limit 2 to 3 min At a stretch, depending on the air temperature. The motor's S2 rating is 3 min
Every figure here is the maker’s or a dealer’s, except the fitted cost, which is our estimate. The full spec sheet is further down.
How much of the install is yours
DIY levels
- Level 5: Owner install. No yard, no electrician.
- Level 4: You fit it, electrician connects. You mount and wire it; a marine electrician makes the final connections.
- Level 3: Split with the yard. The yard does the below-waterline part; you do the wiring.
- Level 2: Wiring prep only. The yard fits the unit and does the hull work; you do the wiring prep.
- Level 1: Yard job. A qualified professional does all of it.
You Yard Electrician. The bar is labor hours; a haul-out is a note.
How we rate DIYYou: 4 to 16 h Yard: 32 to 70 h Electrician: 2 to 4 h Plus a haul-out.
- Cut, bond and fair the tunnel; fit the gear leg, motor and propeller Yard 32 to 70 h The low end is two crew over two days, the job as owners describe it on the forums. The high end rises with boat length between two real billed figures: 32 hours at 35 ft, and the largest invoice we hold, 70 hours at 47 ft.
- Mount the battery box, switch and fuse holder; run and secure the cables You 4 to 16 h Our estimate. No maker times this step, and a first-time owner is slower than a yard, so the range is wide.
- Final connections at the battery and the motor, load test Electrician 2 to 4 h Our estimate. Nobody publishes a time for the final connections and test on their own.
Your part needs:Heavy battery cableCrimping big lugs
A qualified marine electrician should make the final connections and test them before first use. Hours are labor only.
Is it right for your boat?
Our figure is the longest boat one unit can steer in a 15 knot wind. It is a range because each kind of boat catches the wind differently. Here a houseboat gets full thrust to 38 ft, and an express cruiser to 65 ft.
The table below tries the Max Power CT100 on each kind of boat, at every length that kind of boat is built in. The wind is 15 knots and the rules are the finder’s own. A length counts as a fit when the unit gives the thrust that boat needs at the bow. The listing prints no boat length, so thrust alone decides. Max Power's own figures are in the opening lines.
| Boat | Full thrust at 15 knots | Still a fit, in lighter wind |
|---|---|---|
| Pontoon & tritoon | Not listed. A pontoon has no hull body between the logs to bore a tunnel through, and nobody sells one for these boats. | |
| Sailboat | 42 to 51 ft | 52 to 76 ftfull thrust to about 10 knots at 76 ft |
| Houseboat | 32 to 38 ft | 39 to 57 ftfull thrust to about 10 knots at 57 ft |
| Catamaran | 48 to 58 ft | 59 to 80 ftfull thrust to about 11 knots at 80 ft |
| Trawler | 42 to 51 ft | 52 to 76 ftfull thrust to about 10 knots at 76 ft |
| Motor yacht | 42 to 51 ft | 52 to 76 ftfull thrust to about 10 knots at 76 ft |
| Bass & flats | Not listed. Nobody sells a tunnel kit for these hulls, and a bass boat’s shallow planing bow has almost no depth to hold one. | |
| Wake & ski boats | Not listed. Nobody sells a tunnel kit for these hulls. | |
| Express cruiser | 53 to 65 ft | None |
| Center console | No length. More thrust than the boat needs. | |
Reading the two length columns. The first column is where one unit gives all the thrust the boat needs in 15 knots. The second is where the finder still lists it: the unit falls short of what the boat needs by no more than 10 percent, and gives the whole figure only in the lighter wind named. On a boat shorter than the first column’s shortest length, the unit is more than the boat needs.
It is sized for six kinds of boat here. For your own boat, the finder gives an answer that also counts your drive and who does the fitting. The compare page sets this unit beside others.
What it costs fitted
These totals are our estimate of a yard job: the unit’s price, plus a yard’s hours at $160 to $180 an hour, plus the batteries, cable and charger, plus the other parts the box does not hold. A Lifting the boat out of the water on a travel lift or a trailer so work can be done below the waterline. It is billed separately from the job itself. adds $570 to $3,860 at these lengths, with 5 to 7 days out of the water, worked from eight yards’ own rate cards. The hours come from what owners and yards report. Your own yard will have its own opinion. The cost page builds the same figures line by line.
| Boat length | The unit | Yard labor | Haul-out | Batteries, cable, charger | Other parts | Total |
|---|---|---|---|---|---|---|
| 32 ft | $2,824 | $5,120 to $5,760about 32 hours | $570 to $1,540 | $1,212 to $1,879 | $541 to $1,369 | $10,267 to $13,372 |
| 55 ft | $2,824 | $5,120 to $12,60032 to 70 hours | $1,080 to $2,650 | $1,212 to $1,879 | $541 to $1,369 | $10,777 to $21,322 |
| 80 ft | $2,824 | $5,120 to $12,60032 to 70 hours | $1,490 to $3,860 | $1,212 to $1,879 | $541 to $1,369 | $11,187 to $22,532 |
How the batteries, cable and charger add up. We price a battery bank close to the thruster, as the makers recommend, with 10 to 20 ft of cable out and back: red for the positive, black for the negative, cut to length. The low end is the cheapest battery that meets the figure and the shorter run; the high end is a sealed (AGM) battery and the longer run. The charger is a NOCO GEN5X2 two-bank shore charger.
Batteries and lugs are priced at Fisheries Supply and the cable and charger at Defender, read 12 October 2026.
- At 12 V: two 12 V batteries side by side (in parallel), at least 1,000 CCA each (Max Power’s minimum), $886 to $1,104 for both; Max Power’s cable table gives 4/0 to 2 x 3/0 AWG, priced on 4/0 to 2 x 4/0 AWG, the nearest size cut to length: $180 to $629 for the red and black cable and the lugs; a GEN5X2 charger, $146.
The sizing and the costs on this page are estimates, for guidance only and without warranty. They are no quote, and nobody has inspected your boat. Check them against the maker’s manual and your yard before you rely on them. Terms of use.
What else you buy
What follows comes from Max Power’s CT100 and CT125 installation manual, July 2024, read 30 September 2026.
- In the box
- The motor with its relay, the electronic controller, the composite leg with screws and gasket, two propellers. "The thruster is delivered without accessories (fuse, fuse holder, control panel)."
- Bought separately
- The fuse and holder, a manual battery isolator and an electric one, the control panel, an 8 A control fuse, a breaker on the DC panel, the cable, the tunnel. No anode on the composite leg.
- Charging
- Max Power is the one maker that asks for both: the engine's alternator and a charger. A dedicated bank is optional and goes "as close as possible to the thruster". It wants starting-type batteries with high cold cranking amps.
The manual’s words, page 3: “The batteries used by the thruster must be charged by both the main engine's alternator and an appropriate battery charger.”
The “other parts” line in the estimate above is the priced parts below, $541 to $1,369 at Fisheries Supply’s prices on 30 September 2026. The batteries, cable and charger have a line of their own.
| Part | What it is | What to ask for | Dealer price |
|---|---|---|---|
| Tunnel tube | The fiberglass, aluminum or steel pipe the thruster sits in, bonded through the bow. | Max Power names none | $205–$554185 mm fiberglass tunnel tubes up to 60 in (1.5 m) long (VETUS, Sleipner Side-Power, Lewmar), at Fisheries Supply, read 16 October 2026. |
| Control panel | The buttons or joystick at the helm. One helm, one panel: a second steering station needs a panel of its own. | A Max Power control panel, sold with its own guide | $219–$374Side-Power touch panel and single joystick, VETUS push-button panel, Lewmar single joystick, at Fisheries Supply. |
| Control cable, panel to motor | The thin cable from the helm to the motor. Sold by length. | Max Power names none | $29–$173Side-Power control cables, VETUS panel cables, Lewmar Gen 2 connecting cables, at Fisheries Supply. |
| Main fuse | A slow-blow fuse of the ANL type at the battery, in the size the maker prints for the model. | Ceramic or ANL, the rating in the manual's table | $18–$57Side-Power ANL fuses, Blue Sea ANL fuses, at Fisheries Supply, read 16 October 2026. |
| Fuse holder | The block the ANL fuse bolts into, with a cover. | Holder T1 OPTI3119 or T2 | $27–$93Egis and Blue Sea ANL fuse blocks, Side-Power ANL fuse holders, at Fisheries Supply, read 16 October 2026. |
| Main battery switch | The switch that cuts the thruster off from its battery when you leave the boat. | A manual isolator, plus the electric isolator OPTI3160/3 (12 V) or OPTI3170/3 (24 V) | $35–$107Egis m-Series 300 A, Blue Sea e-Series 350 A and HD-Series 600 A on/off switches, at Fisheries Supply, read 16 October 2026. |
| Control-circuit fuse and switch | A small fuse, and often a switch, on the thin wire that powers the panel or control box. | An 8 A fuse on the control box feed | $8–$12Blue Sea in-line ATO fuse holders, at Fisheries Supply, read 16 October 2026. |
| Battery cable and lugs | The two heavy cables from the battery to the motor, sized to the length of the run. The wiring calculator sizes them. | Max Power names none | In the electrical line |
| Battery bank | A cranking-type bank near the motor, sized by the maker's cold cranking amps. The battery calculator checks it. | Max Power names none | In the electrical line |
| Charger or charge feed | How the thruster bank gets charged: a shore charger of its own, a DC-to-DC charger or charging relay from the boat's system, or a charger built into the unit. | Max Power names none | $146–$305NOCO GEN5X2 shore charger, Victron Orion-Tr Smart DC-DC charger, Blue Sea ML-ACR charging relay, at Fisheries Supply. |
| Glass, resin, filler and sealant | What bonds the tube or housing into the hull and seals the gear leg. | Max Power names none | Not priced |
The cost page has the whole list with what every maker says about each part.
For the yard and the installer
The full spec sheet, grouped the way a yard reads it. Every figure is the maker’s or a dealer’s, with its source.
| Thrust and motor | |
|---|---|
| Thrust | 231 lb (105 kgf) As printed: 105(kg) / 231(lbs) |
| Motor | 7.1 kW |
| Voltage | 12 V |
| Fitting | |
| Type | Tunnel, fixed mount |
| End of the boat | Not stated |
| Tunnel diameter | 185 mm |
| What it does to the hull | Tunnel bore below the waterline |
| Haul-out to fit it | Yes |
| Maker’s boat length | 32 to 51 ftMax Power's product page; the listing prints none |
| The tunnel | |
| Depth below the waterline | The minimum acceptable position is 139 mm below the waterline. Ideally the top of the installed tunnel sits 185 mm below it. Shallower than the ideal, the manual says, performance falls off progressively. CT100 and CT125 installation manual (July 2024) |
| Price and ordering | |
| Price | $2,824 equipment only, a dealer's price, marinedeal.com, 15 September 2026 |
| Part number | 42534Duo propeller, composite drive leg, 12 V |
| Documents | |
| Manual | Installation manual (PDF)on the maker's site |
| Warranty | Max Power's website gives 3 years. Its manual gives 2, and 1 more if the warranty is registered within 3 months of installation. Outside pleasure craft it is 6 months. It transfers to the next owner, and the first year covers up to 2 hours of labor in the field. Max Power's warranty conditions |
| The site’s review | Max Power thruster review |
Draw, cable, fuse and battery, at each voltage
These are the maker’s own figures, at each voltage it is sold at. The cable is the size for the shortest run in the maker’s table. A longer run may need heavier cable, and the wiring calculator works that out for your own boat.
| Voltage | Draw | Maker’s cable | Fuse | Battery | Run limit |
|---|---|---|---|---|---|
| 12 V | 680 Ameasured draw | 4/0 AWG for up to 16 ft of cable counted out and back. Longer runs take heavier cableCT100/CT125 installation manual | 315 A ceramic or 400 A ANLCT100 / CT125 manual | 2,000 CCA minimum, as maintenance-free "starting" type batteries, with high CCA outputs; the manual's example is the Exide Maxxima 900, 800 CCA and 55 Ah, with 2000 CCA total outputMax Power installation manual CT100 / CT125, serials from 83338, July 2024 | 2 to 3 min at a stretch, depending on the air temperature. The motor's S2 rating is 3 minCT100 / CT125 manual |
- At 12 V: size the cable for your run, or check the battery you have.
What to weigh
Each point names the fact it rests on.
What to weigh
- The boat comes out of the water to fit it: it needs a tunnel bore below the waterline.The mounting: a bore through the hull, or a housing recessed into it
- Max Power's product page puts it on boats of 32 to 51 ft. Its selection chart puts it on 31 to 40 ft boats with heavy displacement and high windage, and out to 50 ft on light ones. The listing the price comes from prints no range. The boat table is our sizing alone.Max Power's product page and selection chart, read 15 September 2026
What the manual and listings say
This is the note we keep on the Max Power CT100, written from the maker’s manual, its product pages and the dealer’s listing.
In the box: Delivered without accessories: the fuse, holder and control panel are bought.
Our note
The unit Beneteau and Jeanneau fitted at the factory through the 2010s, twin props in a 185 mm tunnel. Max Power's selection chart puts it on 31 to 40 ft boats with heavy displacement and high windage, and out to 50 ft on light ones. The July 2024 manual rates the motor at two to three minutes' running, depending on the air temperature.
It measures 680 A at 11 V against its own fuse-table maximum of 550 A. It wants the tunnel at least 139 mm below the waterline, and names an example starting battery of 55 Ah and 800 cold cranking amps. The manual's warranty is two years, three if registered within three months of purchase. The website says three. Hauling the boat is excluded either way.
Standard on/off units are made for lead-acid, AGM or gel batteries. Max Power's FAQ says lithium will damage them unless specified correctly. Max Power publishes no price and sells through dealers. The figure here is one US dealer's listing for the unit alone. The same dealer's package with a control panel and 25 m of control cable costs more.
Videos

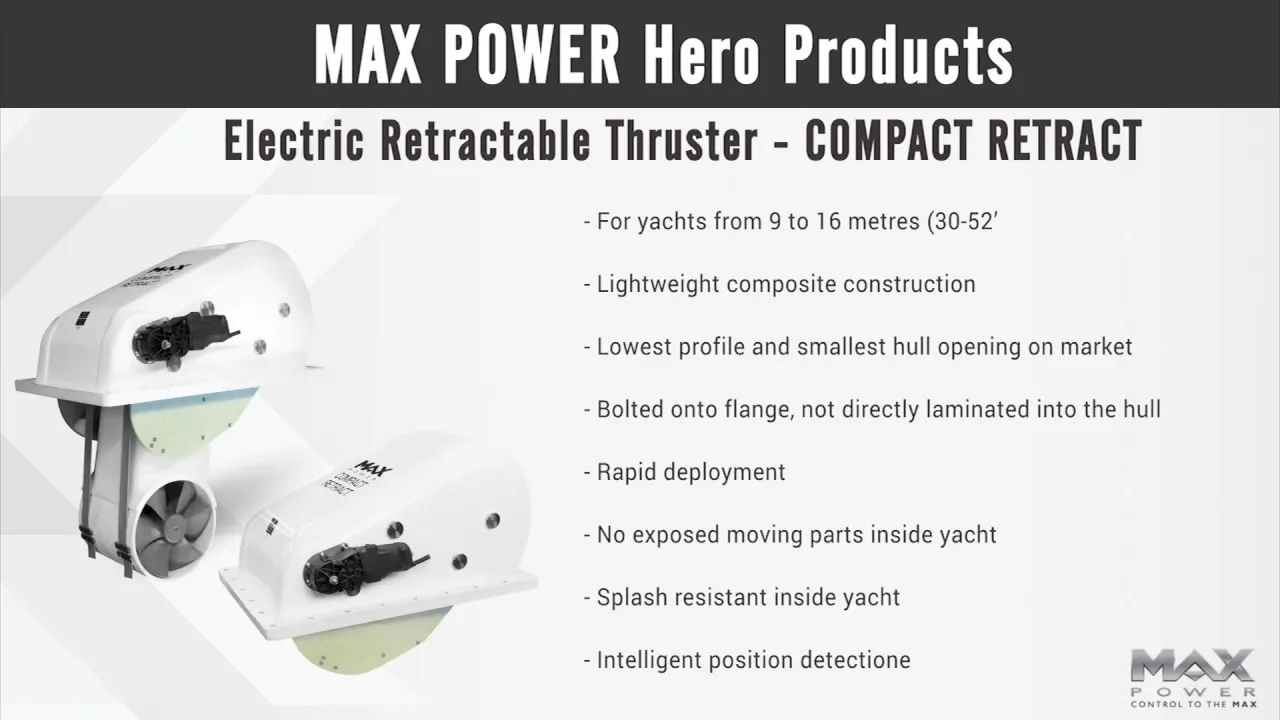

One of Max Power’s own videos, from its YouTube channel: a short reel of the range. It is the maker’s pitch. Watch it for what the unit looks like and how it goes in, and take any claim back to the figures above.
Other sizes and close alternatives
These are Max Power’s next sizes in the same line, by thrust.
- One size down: Max Power CT80 (24 V), 196 lb, $1,780.
- One size up: Max Power CT125 (24 V), 254 lb, $2,947.
These are other makers’ units of the same style, for the same end, within a quarter of its published thrust. Each is that maker’s nearest match.
- VETUS Bow 95, two sizes, 210 to 231 lb, $3,901.
- Quick BTQ 185 DP, six sizes, 143 to 231 lb, $4,201 to $8,752.
- Sleipner E100/185T, 220 lb, $6,885.
Every model with a page here is listed, maker by maker, on the thruster index.
